3x9 MAX Aluminium Combination Ladder 3-section, 150 kg

Built for intensive work

The 3-section aluminium ladder from the MAX series is designed for professional and demanding use. A reinforced construction and factory-fitted features ensure stability, safety, and comfort during everyday tasks. It is a solid choice for tradespeople looking for reliable equipment for a variety of jobs.

TECHNICAL SPECIFICATIONS:

• Maximum working height: 6.13 [m] (approx. 20.1 ft)
• Working height for a 3-section freestanding ladder: 4.7 [m] (approx. 15.4 ft)
• Working height for a 2-section freestanding ladder: 3.9 [m] (approx. 12.8 ft)
• Folded length (transport): 2.71 [m] (approx. 8.9 ft)
• Maximum extended length: 5.30 [m] (approx. 17.4 ft)
• Ladder thickness when folded: 0.18 [m] (approx. 0.6 ft)
• Number of rungs: 3x9
• Maximum load: 150 [kg]
• Stile profile: 82 x 25 [mm]
• Rung profile: 28 x 28 [mm]
• Ladder weight: 16 [kg]

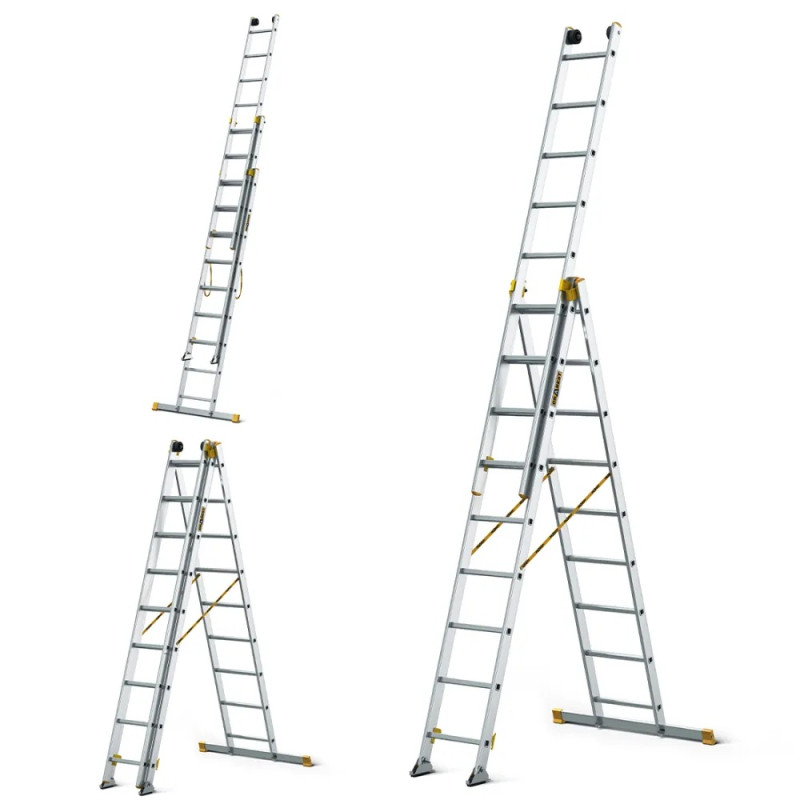

One ladder for every height

You can set up the DRABEST MAX ladder precisely how your task requires. The three-section construction offers several practical configurations:

• single-section lean-to,
• two-section lean-to,
• three-section lean-to,
• A-frame freestanding,
• freestanding with the third section extended.

The additional stair-compatible function allows you to adjust the structure to uneven levels, making the ladder ideal for stairwells.

You can also completely detach the narrowest section and use it separately. A dedicated stabiliser provides proper support, meaning you don't have to set up the entire ladder for smaller tasks.

From quick jobs at low heights to tasks requiring massive reach – one ladder replaces several different solutions.

One pair of feet. Two types of ground.

The MAX ladder is equipped with 2-in-1 swivel feet that you can adjust to the type of surface. One simple movement lets you choose the appropriate support base – no need to swap tips or install extra parts.

On soil and grass, metal spikes sink into soft ground, ensuring a more secure footing when working outdoors.

On concrete, paving or hard flooring, simply rotate the feet. The wide, anti-slip rubber surface increases grip and helps protect the ground from scratches.

Thanks to this solution, you don't have to choose between an indoor and outdoor ladder. Change the foot position and adapt it to your working environment.

Two support methods in one solution – adjust the feet to the ground and work wherever you need.

Rubber wall runner wheels and galvanised guides

With a large reach, smooth and controlled extension is just as important as height. That is why the MAX series is equipped with rubber wall runner wheels, which make it easier to guide the structure up the wall while extending subsequent sections.

The soft, rubber surface of the wheels limits direct aluminium contact with the building facade, helping protect render from scratches, scuffs, and dirt.

Sturdy galvanised guides ensure the proper alignment and movement of sections. They stabilise individual parts during extension, while the zinc layer increases resistance to corrosion and heavy use.

In freestanding configuration, structural elements additionally help secure the ladder against over-extension, giving you greater control over its setup.

Smoother extension, less wall contact and long-lasting component protection – engineered for regular work.

Two stabilisers. More possibilities.

The wide main stabiliser increases the ladder's footprint, ensuring a more stable setup for the entire structure. It is complemented by anti-slip, profiled feet that improve ground grip and help prevent unwanted shifting.

The MAX series is also equipped with a second, dedicated stabiliser for the detachable section. This means the narrowest element can be used as a standalone lean-to ladder with proper base support once separated.

You don't need to set up the whole ladder when the task doesn't require maximum reach. Detach the section, mount the dedicated stabiliser, and use a lighter, simpler configuration.

Full construction for working at height. A separate section for smaller tasks. Stable support in both variants.

For work that demands more

The DRABEST MAX series is engineered for regular use in demanding conditions. The reinforced construction is ideal for construction sites, as well as assembly, roofing, installation, and facade works.

Professional purpose is confirmed by compliance with the EN 131 Professional standard. The ladder offers a maximum load capacity of 150 kg, covering the user alongside tools and equipment.

This is equipment for those who use ladders regularly and expect stability, durability, and solutions tailored to professional applications.

150 kg load capacity. EN 131 Professional. MAX series – specific parameters for specific tasks.

Why choose the MAX ladder by DRABEST?

• UK stock and dispatch – solid ladders designed by DRABEST with professional use in mind, ready for fast dispatch.
• Versatile configurations – lean-to, freestanding, third section extended, stair-compatible or with a detached element.
• 2-in-1 swivel feet – metal spikes for soft ground and a rubber surface for hard surfaces.
• Wall runner wheels – make extending sections easier and help protect facades from scuffs.
• Reinforced construction – swaged rungs 28 × 28 mm and maximum load up to 150 kg.
• EN 131 Professional – compliance with the European standard for ladders intended for professional use.

EN 131 Professional – standard for professional applications

The ladder meets the requirements of the European EN 131 standard for professional ladders, covering construction, strength, and stability requirements. This confirms it has been designed for regular use in demanding working conditions.
